Private or commercialPage Financial Analysis > From Grid Tariff > Select > From Grid Tariff
To define the From Grid Tariff, go to the menu Database > From Grid Tariff or the page Financial Analysis > (From Grid Tariffs) Select > Edit.
-> Prerequisite:
From grid tariffs are only available for the grid concept surplus feed
-> The data for a from grid tariff are:
Country, Location: Scope
Energy supplier: selected company
Name: Tariff name, e.g. Berlin basic private electricity
Consumption type: Private or commercial
Base price: consumer-independent portion of price per month
Minimum quantity: Minimum purchase quantity in €/year
With consumer-dependent energy price
Zone tariff
Sliding scale tariff
This option is only relevant if different kilowatt-hour prices apply for every tariff period depending on energy consumption.
Example:
The following is defined as a kilowatt-hours price table:
From 0 kWh 15 ct/kWh
From 2000 kWh 20 ct/kWh
From 4000 kWh 25 ct/kWh
Consumption is at 5000 kWh.
Sliding scale tariff
If this is selected, then the valid kWh price is determined as follows:
In this example, a kilowatt-hour price of 25 ct/kWh for the whole 5000 kWh is the result
Zone tariff
If this is selected, then the valid kWh price is determined as follows:
Kilowatt-Hour Price: (2000 kWh* 15 Ct/kWh +2000 kWh*20 Ct/kWh + 1000 kWh* 25 Ct/kWh) /5000 = 19 Ct/kWh
Type of Input Upper Limit
Select Maximum surplus per month if your power supply company gives a preset feed-in upper limit.
Select Maximum accumulated surplus if your power supply company gives an accumulated feed-in upper limit (e.g. the double tariff counter is not permitted to exceed a defined value).
Select None if there is no feed-in upper limit.
Input Upper Limit
Enter the value for the feed-in upper limit here, if one exists.
The
Available checkbox sets whether the tariff is currently available.
Number of different tariff periods
An individual kilowatt-hour price can be defined for every tariff period.
Kilowatt-hour price definition
The kilowatt-hour price for the relevant tariff period is defined in this table.
If different kilowatt-hour prices apply according to energy consumption, then new zones can be added by clicking on this button.
Clicking on this button removes the last zone
Rename tariff zone
By right-clicking on the name of the tariff zone, it is possible to change the name.
The digit via which the kilowatt-hour price is assigned to the tariff periods can be found after the name.

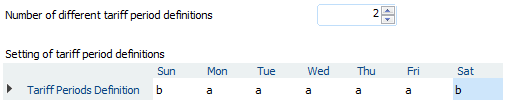

Number of different tariff definitions
An individual tariff period definition is set up for every weekday where the tariff periods differ. In the Assigning tariff period definitions table, every weekday is assigned a relevant tariff period definition by selecting the appropriate letter.

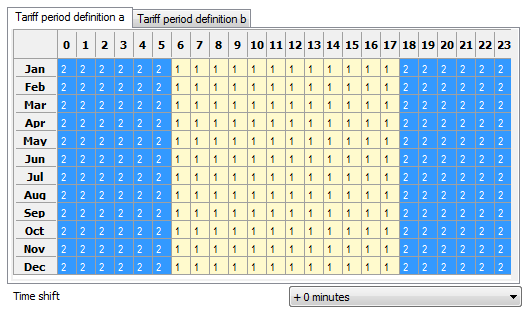

Tariff Periods Definition
It is possible to assign a predefined kilowatt-hour price definition for every hour of the day in this table. Mark the times during which the same kilowatt-hour price should apply. Use the right mouse button to select the corresponding kilowatt-hour price, or use the keyboard to enter the digit relating to the kilowatt-hour price.
Time shift: Changes the times in the tariff definition by the amount specified. For example, 8:00 is changed to 8:30.
